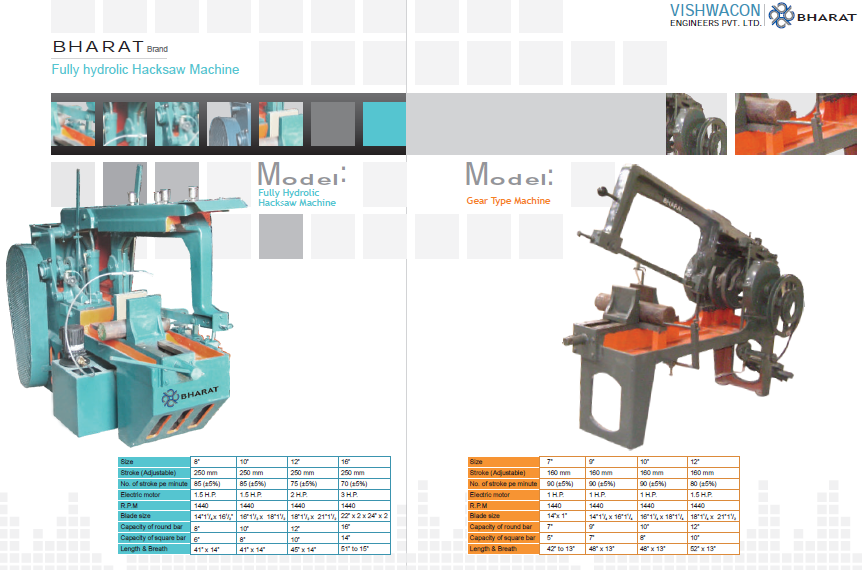

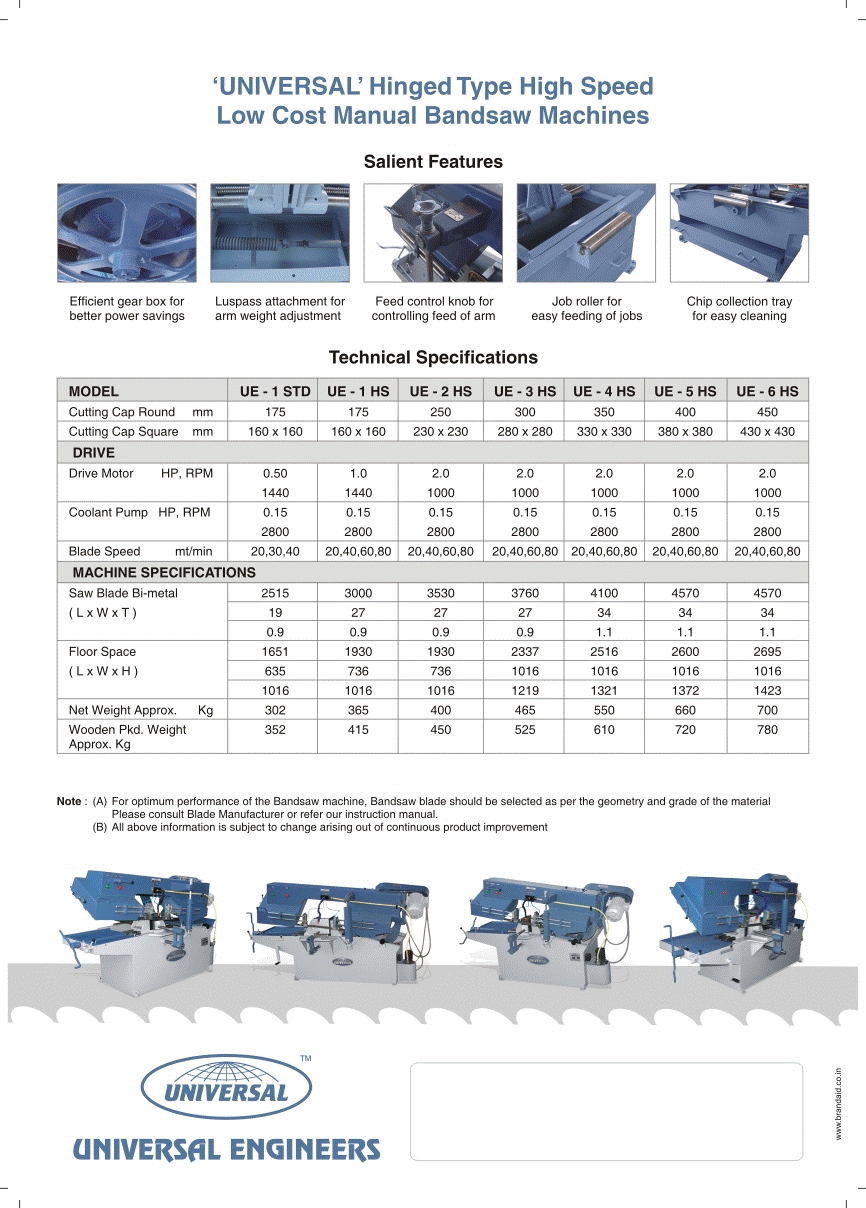

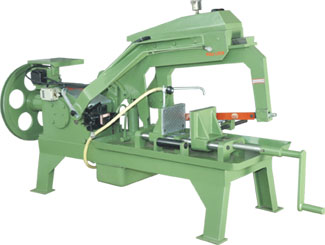

HACKSAW & BANDSAW MACHINE
HACKSAW & BANDSAW MACHINE
HACKSAW & BANDSAW MACHINE
Silent Feture
Constant Hydraulic System
Variable Cutting Pressure
Lifting Bow at Idle Stoke
Automatic Lifting after Finish Cut
Automatic Switching Off
Prismatic Guidways
Long Working Life
| Size | 14� (350 x 175) | 16� (400 x 200 | 18� (450 x 250) |
| Cutting Capacity : Round | 175 | 200 | 250 |
| Cutting Capacity : Square | 150 | 175 | 200 |
| Blade | 350 | 400 | 450 |
| Electric Motor Running | 1 H.P. 1440 RPM | 1 H.P. 1440 RPM | 1.5 H.P. 1440 RPM |
| Height | 875 | 990 | 950 |
| Weight | 190kg | 210kg | 240kg |

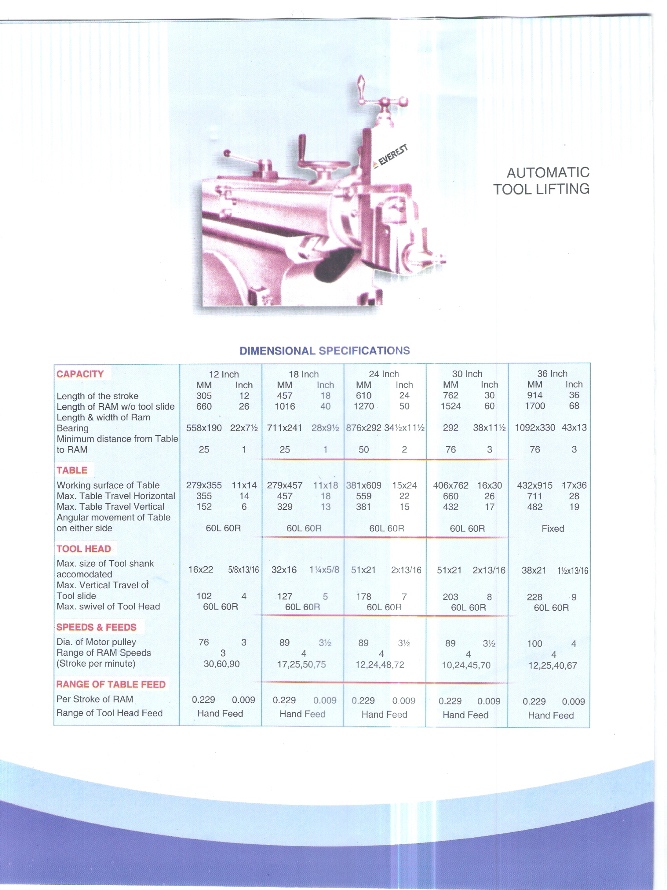

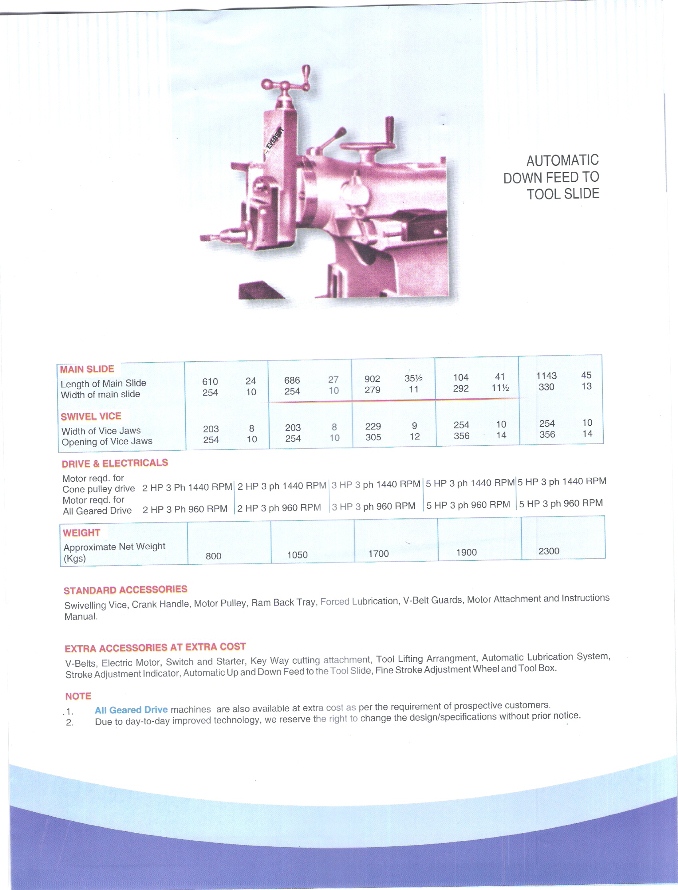

SHAPPING MACHINE

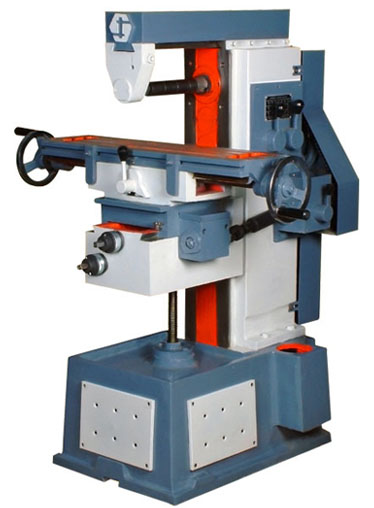

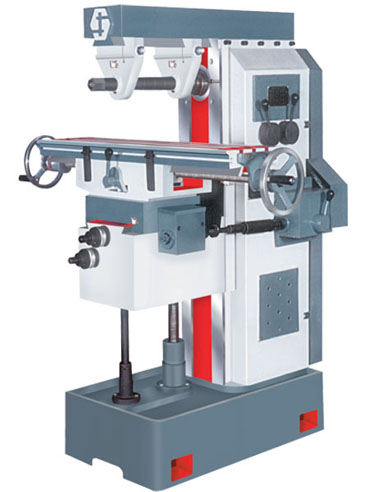

MILLING MACHINE
Working Surface : 750 � 175 mm
Distance from spindle centre to underside of over support : 125 mm
Longittudinal feed (Auto) : 375 mm
Cross feed (Manual) : 100 mm
Vertical feed (Manual) : 225 mm
Spindle Speed : Six 65, 78, 102, 149, 295, 385, 562 rpm
Number of feed : Twelve
Arbour : 25.4 mm
Spindle Bore : 15 mm
Spindle Taper : ISO 30
Electric Motor : 1 HP � 1440 rpm 3 Phase
Coolant Pump : 0.11 kw, 2700 rpm
Working Surface : 1050 � 250 mm
Distance from spindle centre to underside of over support : 125 mm
Longittudinal feed : 600 mm
Cross feed : 230 mm
Vertical feed : 450 mm
Spindle Speed : 65 – 275 rpm
Number of feed : Three
Arbour : 25.4 mm
Spindle Bor : 17mm
Spindle Taper : 150-40
Electric Motor : 2 HP � 1440 rpm 3 Phase
No. Of Feed : Three (16mm/38mm/24mm perminute)
Coolant Pump : 0.11 kw, 2700 rpm
Floor Space : 550 � 980 mm
Height : 1500 mm
Coolant Tank Col. : 20 ltr

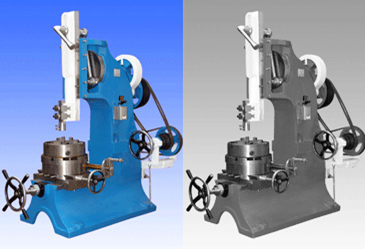

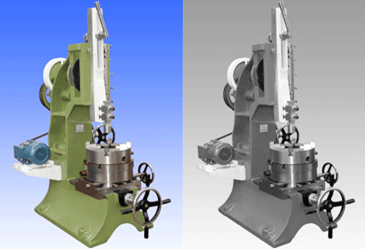

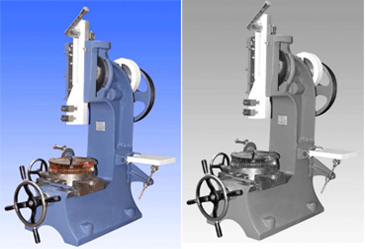

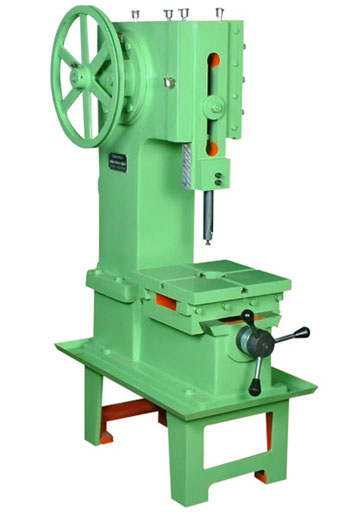

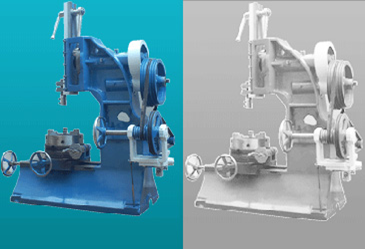

SLOTING MACHINE
Working Stroke : 150 mm
Max. Diameter Accommodated : 350 mm
Longitude Traverse : 75 mm
Surface Table Size : 290 � 290 mm
Cross Traverse : 100 mm Table
Electric Motor : 1 HP � 1440 rpm 3 Phase

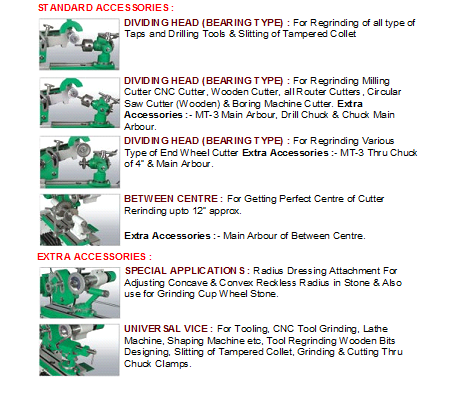

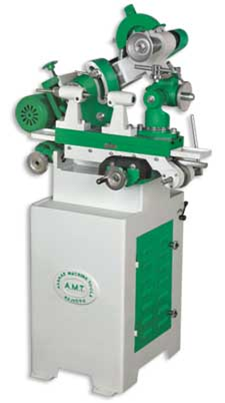

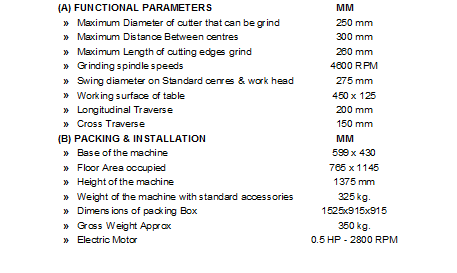

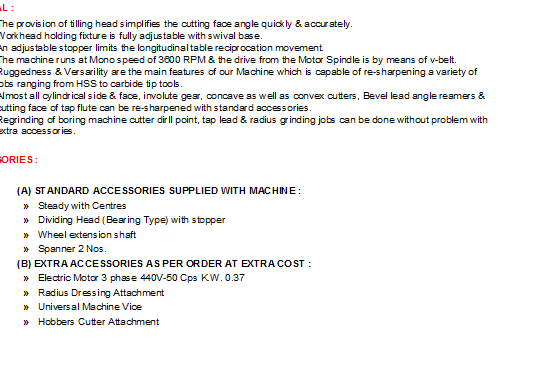

TOOL GRINDING MACHINE
